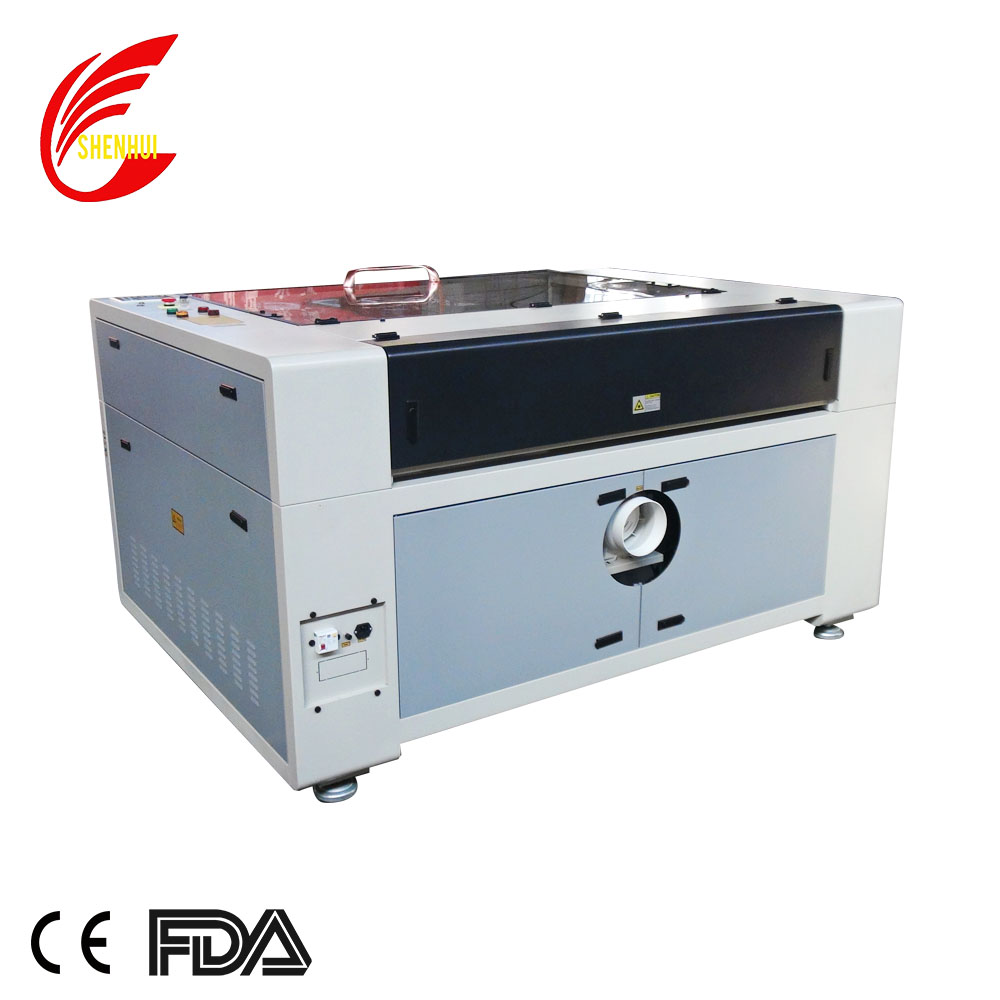

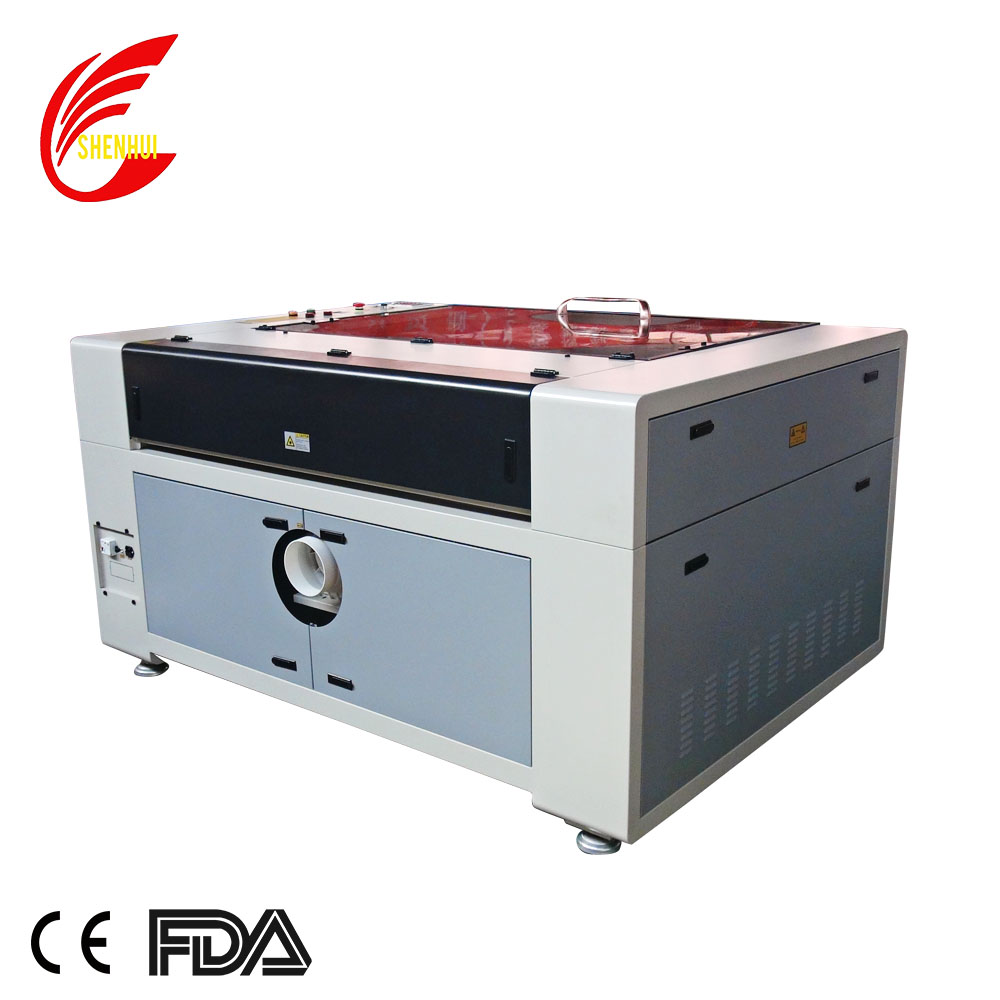

SH-G1390 Laser Cutting Machine

Imported linear guide design, stable performance, long life, Y-axis double coupling design can effectively improve the cutting effect, if the use of double laser head, can double the processing efficiency.

Min Order: 1pcs

Laser tube:
Laser head:
Platform lift mode:
Quantity:
  • SH-G1390
  • shenhui laser

Product Description

Applicable materials

Leather, cloth, felt, fur, acrylic, bamboo, wood, plastic, resin, cardboard and other non-metallic materials.


Applicable industries

Clothing cutting, leather cutting, template cutting, packaging printing, advertising decoration, architectural decoration, art gifts, computer embroidery, paper products, acrylic products, thin density board and other non-metallic materials cutting processing.


Video

          SH-G1290 Double-Headed Cutting Cloth


                 SH-G1390 glass bottle engraving


                           SH-G1390 leather cutting

Technical Parameter

Laser Power   80W / 100W / 130W
Laser Type             Hermetic CO2 glass tube
Power Supply AC220V±10% ,50 Hz / AC110V±10% ,60 Hz
Working Area 1300mmx900mm
Max Moving Speed      0-30000mm/min
Worktable Aluminum knife 、 Honeycomb worktable
Locating Precision       <0.01mm
Min Shaping Character   character:3x3mm, letter:2x2mm
Operating Temperature  5℃-35℃
Resolution Ratio          ≤4500dpi
Data Transfer Interface    U disk / USB / Network Cable
System Environment Windows7 / 8 / 10
Cooling Way water cooling
Graphic Format Supported ai、dxf、plt、dst、bmp、jpg、jpeg、png and others
Compatible Software CorelDraw, AutoCAD
Cutting Thickness 0–25mm(depends on different materials)
Color Separation          separation of cutting up to 256 colors
Sloping Engraving Yes
Cuts off the water supply the protection Yes
Net Weight 280kg
Gross Weight 350kg
Machine Dimension 1800x1510x1050(mm)
Package Dimension 1920x1630x1270(mm)
Specification red dot
RD6442board
PMI guide rail
imported focus lens
leadshine motor and drive

Aluminum knife + Honeycomb worktable

Coreldraw/AutoCAD output directly
USB port,DSP high-speed card,LCD display panel,support offline
Optional Parts Double-head
CW3000 chiller/CW5000 chiller
Laser power:80W/100W/130W/150W/180W
Color: red/green/black/white/orange/yellow/blue
Motorized up&down worktable(0~20cm)/fixed worktable


Sample



5.5

4

6

7


Detailed pictures

0102
